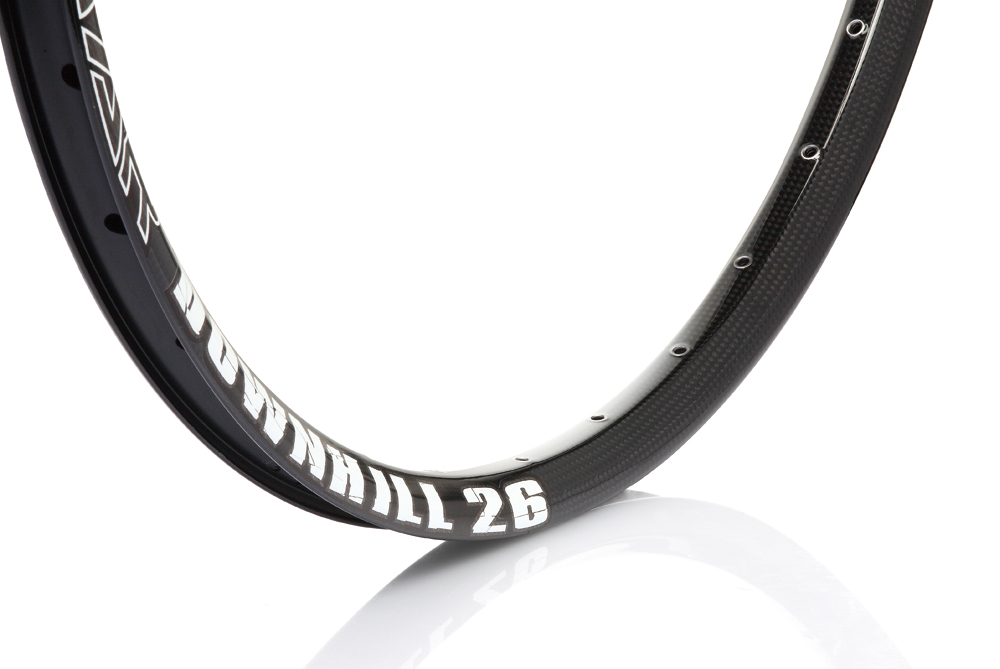

MA DOWNHILL RIM

Stonebreaker! Incredibly rigid!
The high quality alloy rim with its rigid carbon wrap makes these aluminum rims super strong, not only to resist whatever the trail has to offer but also resists small scratches affecting it’s high quality surface.

Rim Diameter: 26”/27.5”/29” Hole: 32/36

Rim material: Alloy rim + Carbon wrap Weight: 740g Width: 21

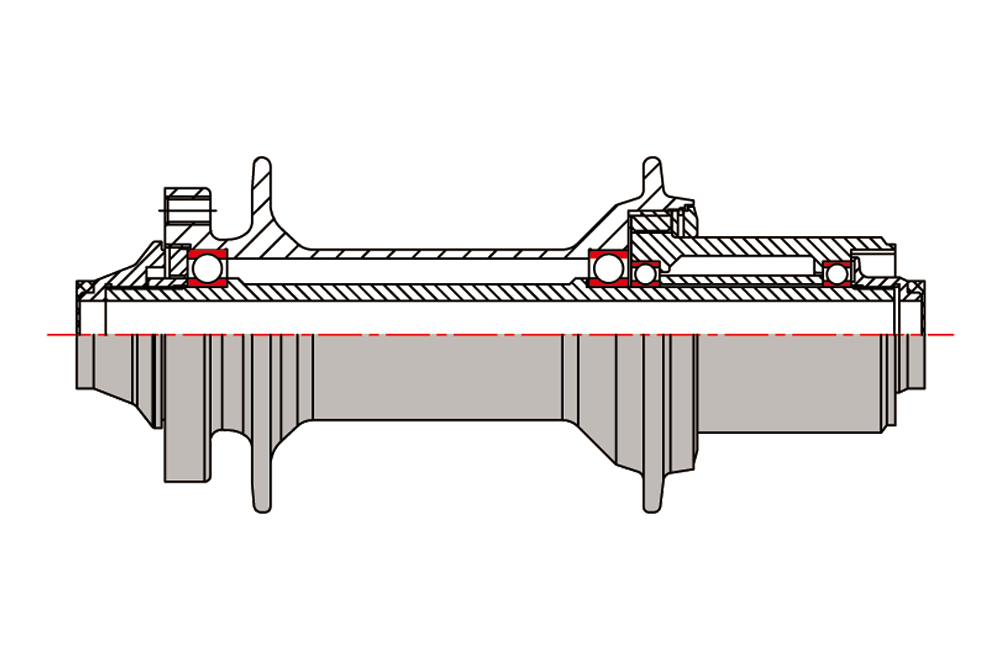

MA DOWNHILL HUB

Sleek styling with powerful four pawl design.
Used within the front wheels hub is a 25mm high-strength load bearing (up to 400N). This coupled with two metal rings to improve bearing life with stability, greatly enhances the smooth rotation and the ride life of this and impact resistant hub. The rear wheel has 17mm diameter spindle bearings with high-strength galvanized metal to improve the overall ride life. It sports an internal drive with a four ratcheting pawl system precisely calculated at the best angle to achieve perfectly smooth rotation.

Weight: (F)264g (R)297g Hole: (F)32/36 (R)32/36

O.L.D: Front 100mm / Rear 130mm Weight: (F)114.5g (R)250.5g Hole: (F)16/20 (R)20/24

DESIGN

Water resistant hub design.
Because of the two 90-degree turn angles of this design, the air viscosity created through the turning of the wheel generates pressure to prevent water from easily flowing into the inner bearings

SPOKES

Using high-strength lightweight Pillar spokes

Spokes Type: Double Butted 2/1.8/2
