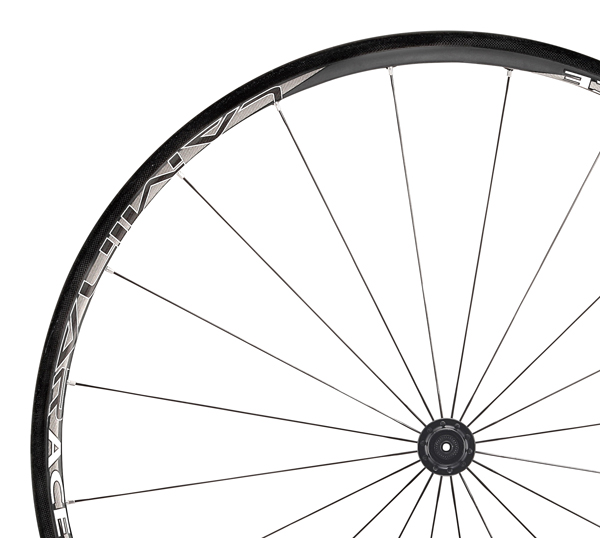

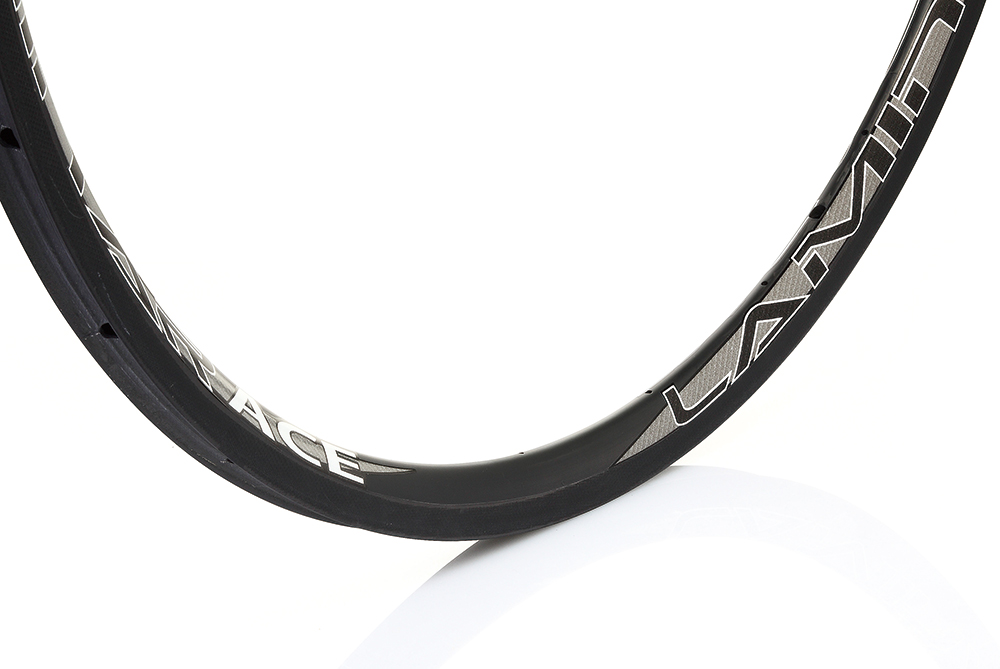

ACE CARBON TUBULAR RIM

At only 280g, the ACE carbon tubular rim is incredible lightweight.
We not only pursued a balanced light weight rim but also security. We engineered woven arrangement, and a time trusted molding practice. The achievements are these ACE Carbon Wheels!

Rim material: CARBON Weight: 280g Width: 20.6

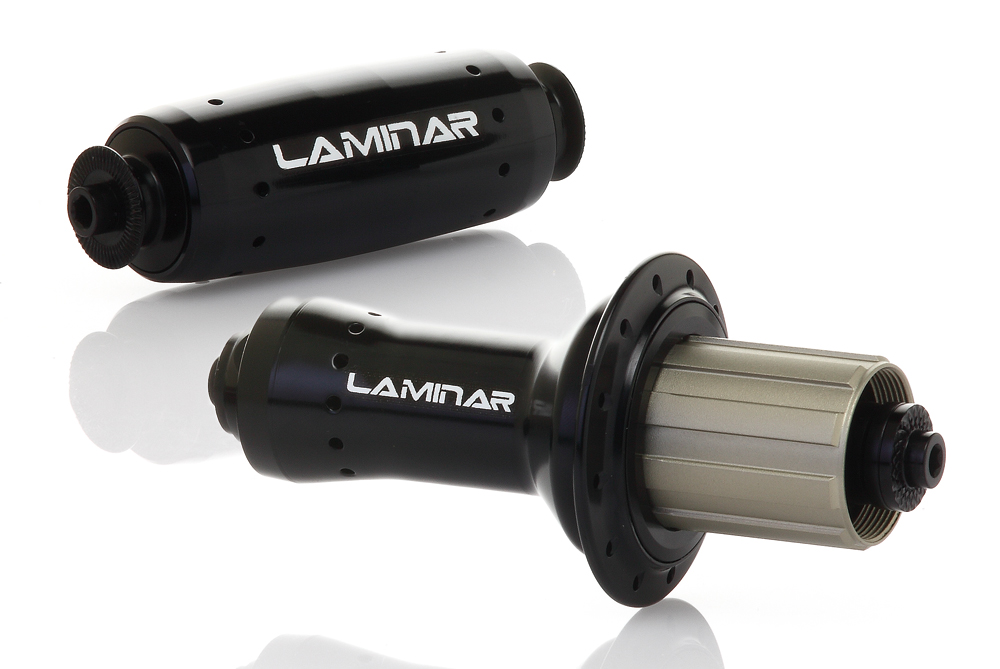

ACE ALLOY HUB

Simple but not so simple wheels.
Along with its sleek lines, we put high-quality bearings in this front wheel along with a diameter of 17mm axle to achieve an optimal rolling inertia. The rear wheel is 15mm diameter with new high-strength galvanized metal shaft bearings to improve the overall riding life. It sports an internal drive with a four ratcheting pawl system precisely calculated at the best angle to achieve perfectly smooth rotation even after 2,000 km of ride testing!

O.L.D: Front 100mm / Rear 130mm Weight: (F)94.7g (R)250.5g Hole: (F)16/20 (R)20/24

DESIGN

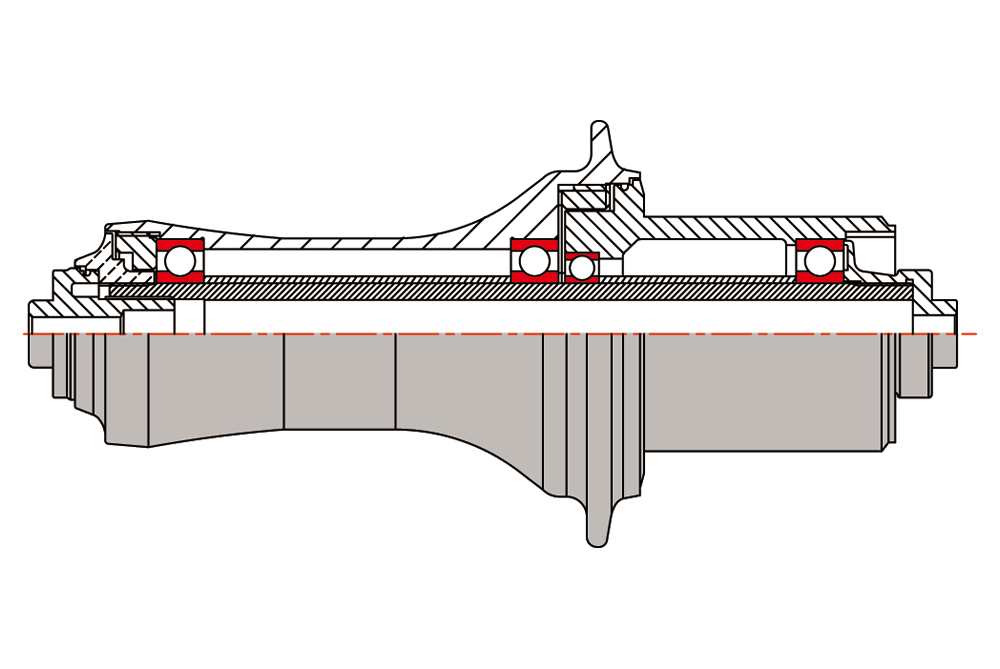

Simple but not so simple wheels. We placed the bearings towards the outside of the front wheel to achieve a highly rigid wheel with great rolling inertia.
Water resistant hub design. Because of the two 90-degree turn angles of this design, the air viscosity created through the turning of the wheel bearings.

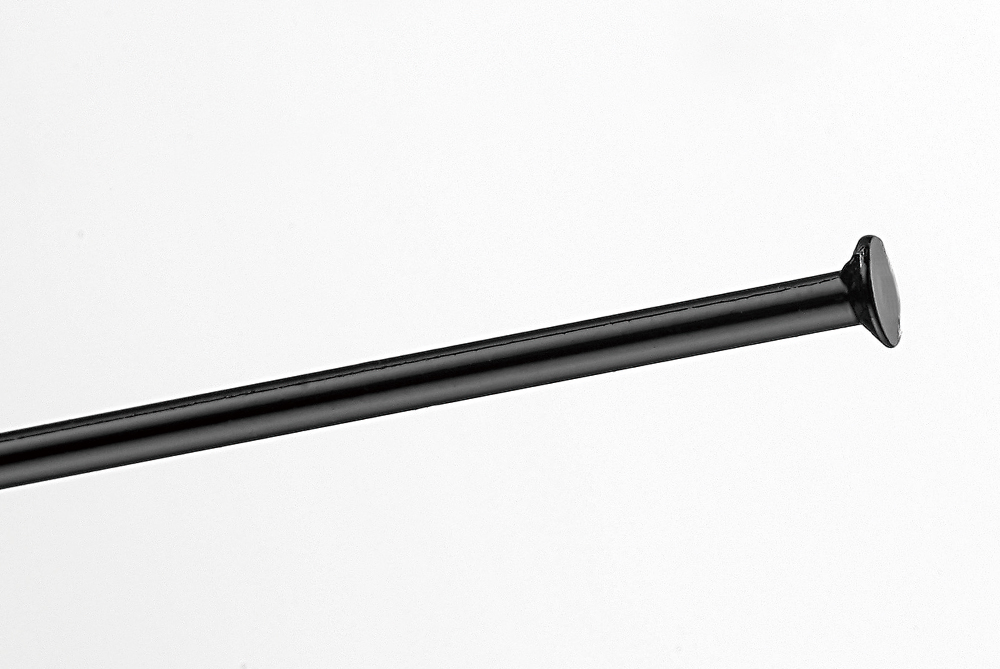

SPOKES

Using high-strength lightweight Pillar spokes.

Spokes Type: Aero 2/2.2/0.95

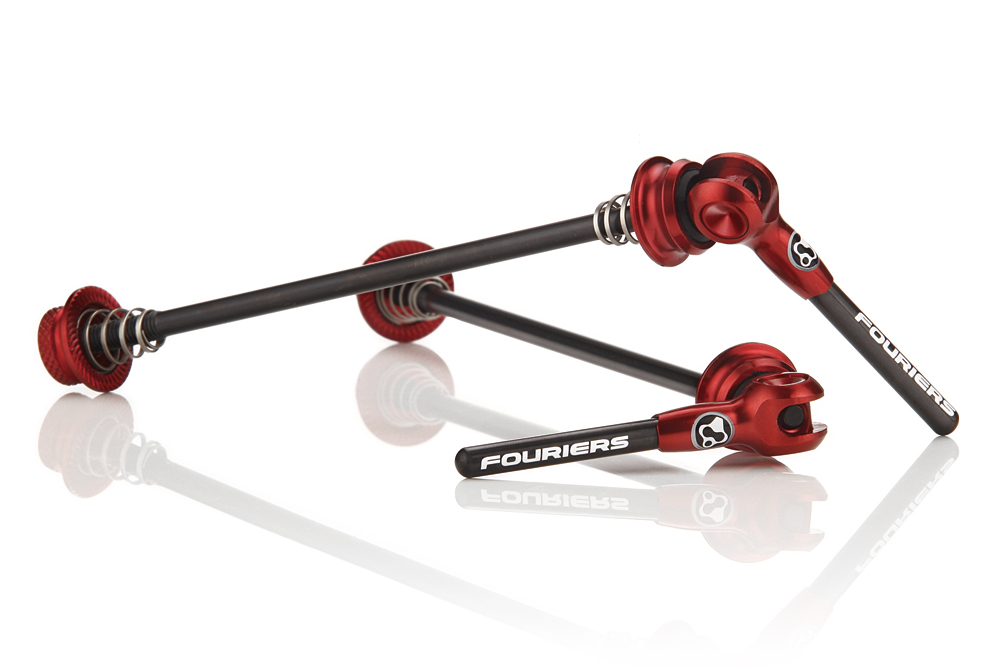

QUICK RELEASE

The quick release, by Fourier, weighs only 42g.
The CNC precision crafted curved lines combined with quick release carbon lever provide the perfect combination.

Alloy and Carbon bonded Lever Ti Axle Weight: 42g
