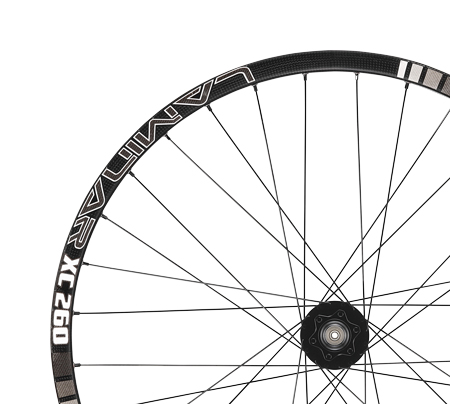

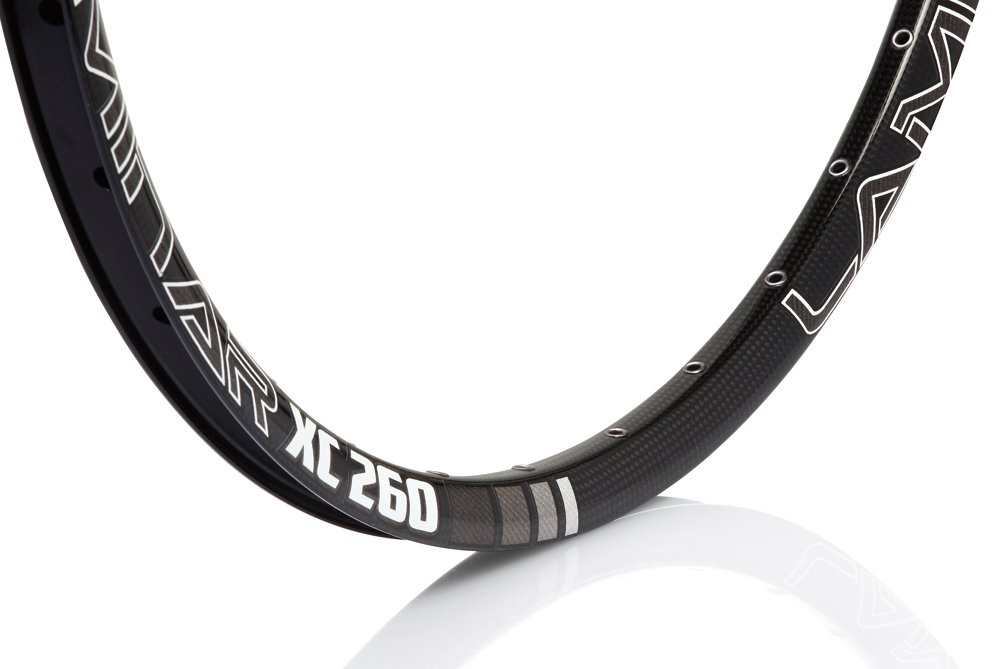

XC-260 RIM

Bring more than just a carbon wrap alloy rim through better technology.
Bring more than just a carbon wrap alloy rim through better technology
A bit like the pursuit of a better life, we looked at a way to provide more rigid ride to a traditional aluminum rim. We did this by attaching a layer
of carbon, not only effectively increasing the rigidity of the rim, but also bringing more of a rims beauty outwards.

Rim Diameter: 26”/27.5”/29” Hole: 24/28/32

Rim material: Alloy rim+Carbon wrap Weight: 540g Width: 19

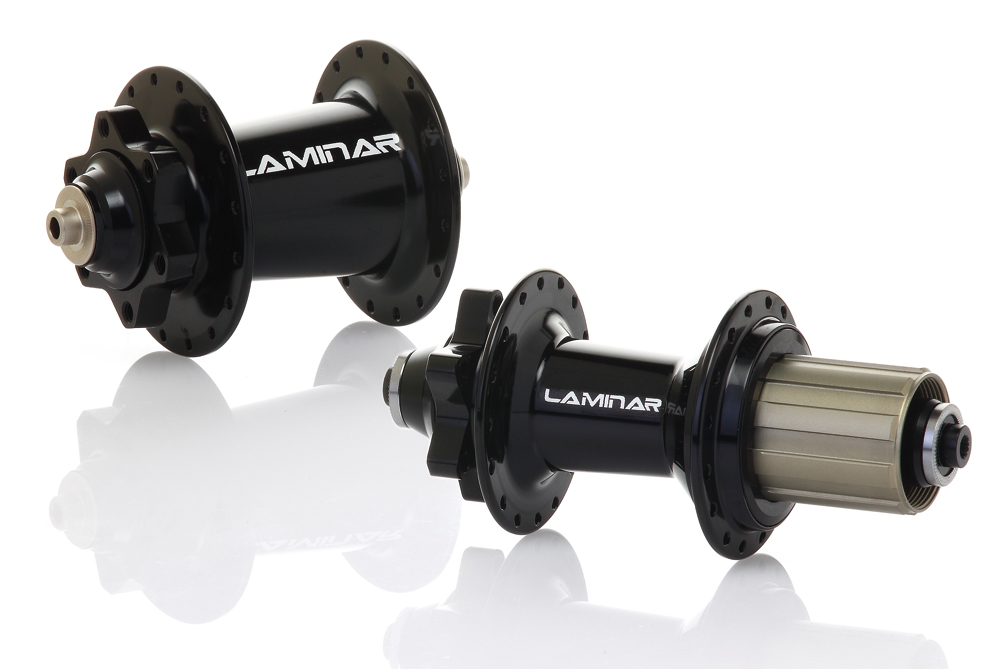

XC-260 HUB

Fast and superior performing hub.
In order to obtain a smooth rotating hub with excellent impact life we manufacture the front hubs using 20mm high strength bearings. In addition to the impact qualities, the hubs can withstand more external rotation forces.
The rear wheels have 17mm diameter spindle bearings with high-strength galvanized metal to improve the overall riding life. It sports an internal drive with a four ratcheting pawl system precisely calculated at the
best angle to achieve perfectly smooth rotation.

Weight: (F)287g (R)285g Hole: (F)24/28/32 (R)24/28/32

O.L.D: Front 100mm / Rear 135mm Axle: Front QR/ 15mm / Rear QR 12mm

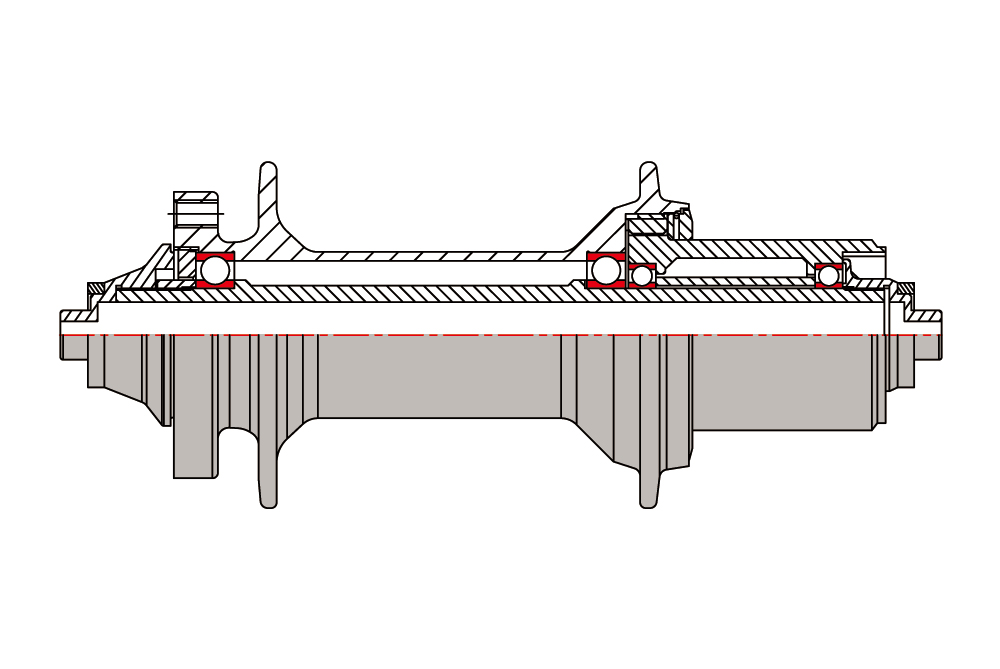

DESIGN

Water resistant hub design.
Because of the two 90-degree turn angles of this design, the air viscosity created through the turning of the wheel generates pressure to prevent water from easily flowing into the inner bearings

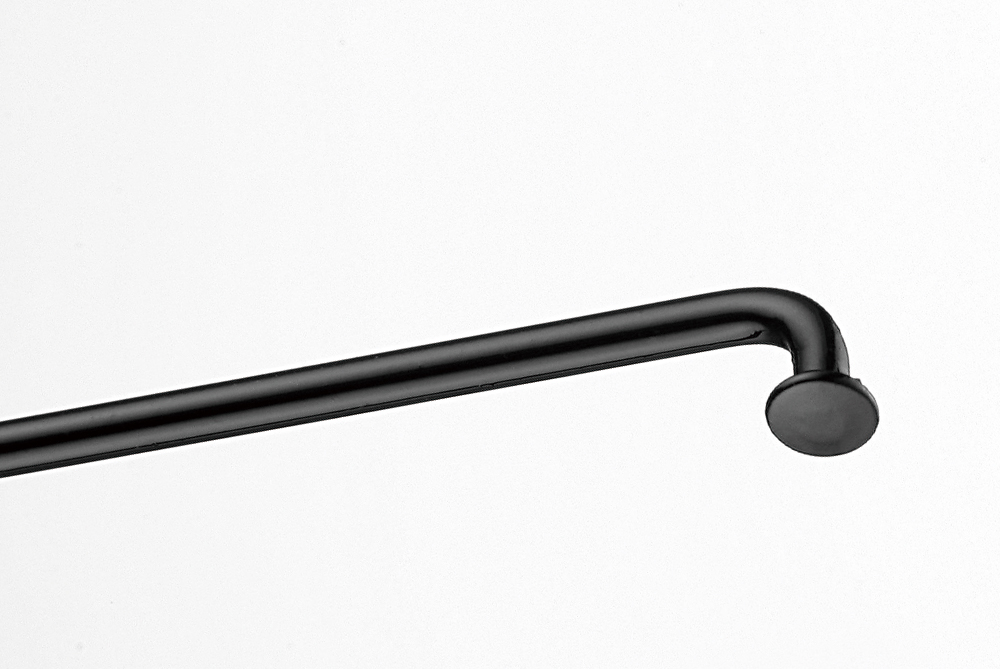

SPOKES

Using high-strength lightweight Pillar spokes

Spokes Type: Double Butted 2/1.8/2
